PM4-16 Compressor

characteristics.

-55

-50

-45

-40

-35

-30

-25

-20

-15

-10

-5

-50 +0-40 -30 -20 -10

Input dBu

Compressor CharacteristicsPolar Response Capsule Frequency Response

Graphs

$UFKLWHFW·VDQG(QJLQHHU·V6SHFLÀFDWLRQ

The paging microphone shall be capable of paging up to 16 zones

HLWKHULQGLYLGXDOO\LQXVHUGHÀQDEOHJURXSVRUDOO]RQHVVLPXOWDQHRXVO\

The microphone shall be available in versions with 4, 8, 12 or 16 zone

paging buttons. It shall be possible to interconnect up to 32 similar

paging microphones with full operational transparency, via standard

CAT-5 cabling.

7KH PLFURSKRQH VKDOO EHFRPH DFWLYH ZKHQ D QRQODWFKLQJ¶7$/.·

button is pressed. Zone selection shall be by electronically latching

EXWWRQVZLWKVHOHFWLRQFRQÀUPHGE\/('V$QRQODWFKLQJ¶&$//$//·

button shall also be provided, selecting paging to all supported zones.

)RXU¶*5283·EXWWRQVVKDOODOVREHSURYLGHGDQGLWZLOOEHSRVVLEOH

IRUWKHXVHUWRGHÀQHDJURXSRI]RQHVIRUHDFK$¶&/($5·EXWWRQ

will be provided to cancel incorrect zone selections. There shall be

DOHJHQGDUHDDGMDFHQWWRHDFKEXWWRQIRUXVHU·V]RQHLGHQWLÀFDWLRQ

The microphone itself shall be mounted on a gooseneck and

be non-removable. Two lengths of gooseneck shall be available.

7KH PLFURSKRQH OHYHO VKDOO EH DGMXVWDEOH E\ DQ LQWHUQDO FRQWURO

of the preset type.

The paging microphone will interface directly to compatible mixers

or other host devices via a digital interface carrying audio, zone

selection and power on a single CAT-5 cable. It will also be equipped

with an analogue interface consisting of an audio output and a

separate short-to-ground control port, permitting its use with any

other host devices equipped with this type of access. The analogue

zone selection interface shall be able to sense when any paralleled

system is active.

The microphone will be capable of being powered via either type of

LQWHUIDFHRUIURPDORFDOH[WHUQDO3687KHXQLWZLOORSHUDWHIURP

both DC (12-24 V) and AC (9-17 V) supplies.

,W VKDOO EH SRVVLEOH WR VHW YDULRXV FRQÀJXUDWLRQ RSWLRQV ZKLFK

will not be resettable by the user and which will be reinstated

after a power interruption: i) setting zone selection to either

remain in place post-announcement, or to self-cancel; ii) offsetting

zone numbering, allowing a microphone to address a different

FRQVHFXWLYHO\QXPEHUHGVHWRI]RQHVLLLORFNLQJJURXSGHÀQLWLRQV

so they cannot be altered by the operator; iv) assigning two levels of

SULRULW\ZKHUHE\¶KLJK·SULRULW\ZLOOWDNHSUHFHGHQFHZKHQPHVVDJHV

FRQÁLFWZKHQ PXOWLSOHPLFURSKRQHVDUHLQ XVHYHQDEOLQJ RQHRI

four pre-set internally-generated pre-announcement chimes to be

selected and setting the chime level; vi) disabling the selection of one

or more zones.

The paging microphone shall be built in a compact housing

with a non-slip base for desktop use; the unit shall also be

suitable for wallmounting.

The paging microphone shall be the Cloud PM Series; Model PM4

(4 zones), PM8 (8 zones), PM12 (12 zones) or PM16 (16 zones).

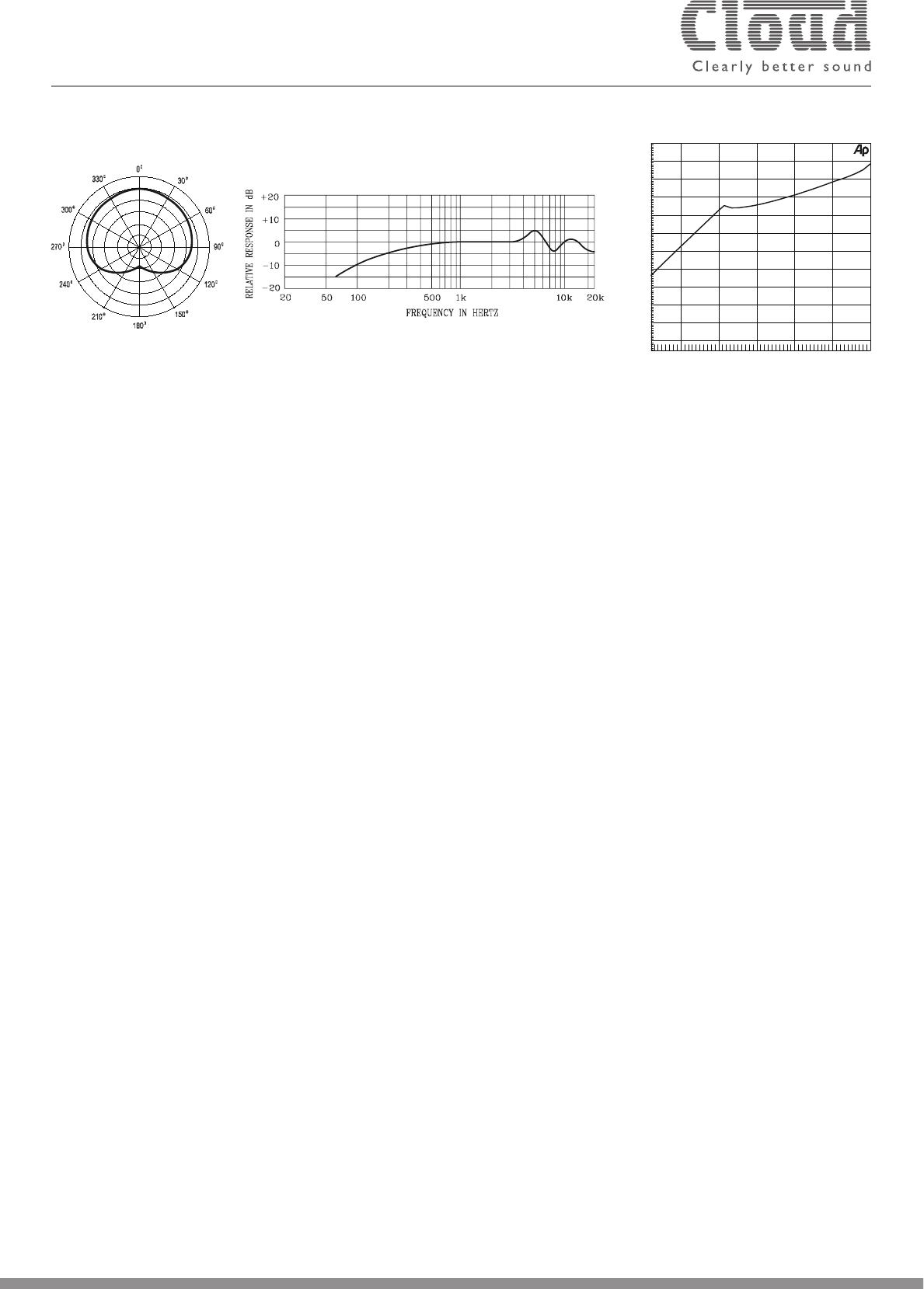

Polar Response Capsule Frequency Response Compressor Characteristics

Issue_2.0 E&OE
